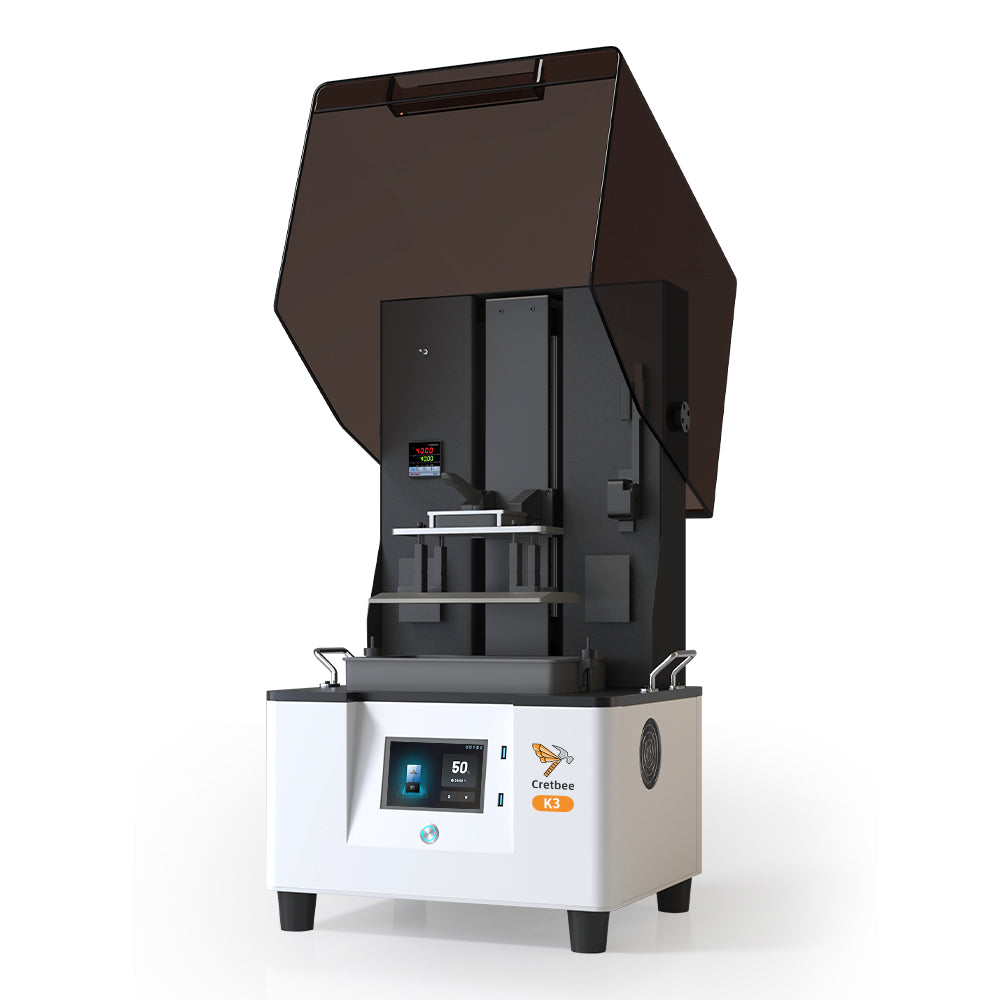

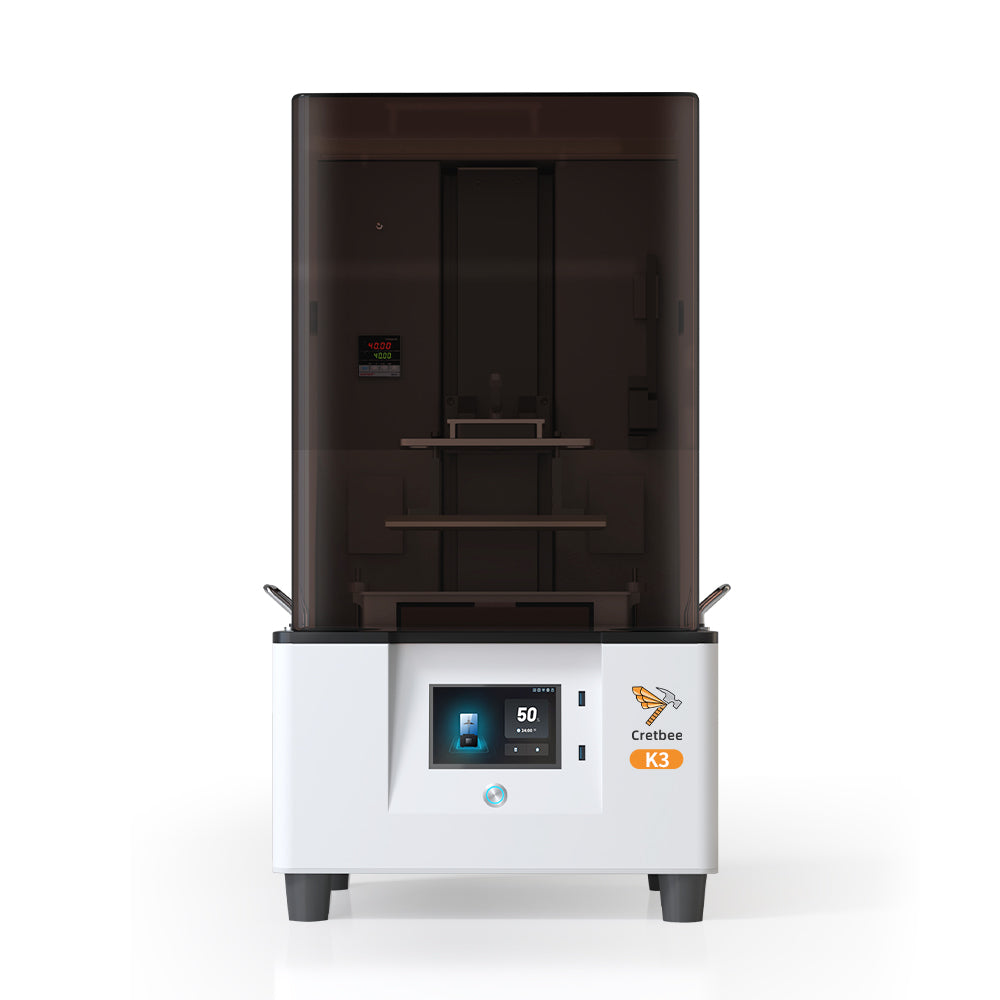

Value (14K/10.1″) Industrial Grade LCD 3D Printer
- Using point light source technology, the lighting is more uniform.
- Servo motor - improves positioning accuracy and anti-interference ability.
- Fast and stable heating system, real-time dynamic constant temperature adjustment.
Choose options
- Using point light source technology, the lighting is more uniform.
- Servo motor - improves positioning accuracy and anti-interference ability.
- Fast and stable heating system, real-time dynamic constant temperature adjustment.
- Using point light source technology, the lighting is more uniform.
- Servo motor - improves positioning accuracy and anti-interference ability.
- Fast and stable heating system, real-time dynamic constant temperature adjustment.
| Brand/Model No. | Value (14K/10.1″) |
| Z-axis Effective Travel | 300mm |
| Z-axis Accuracy | 0.02mm |
| LCD Screen | 10.1 inch 14K |
| Printing Size | 211 x 118 x 300mm |
| Resolution | 13320 x 5120dpi |
| XY pixel accuracy | 16 x 24μm |
| Printing Speed | 10~20mm/hr |
| Print Layer Thickness | 0.1/0.05/0.025mm |
| Light uniformity | 92% |
| Forming Technology | Light Curing Surface Forming |
| Printing Materials: | Photosensitive Resin(Standard/High Tough/flexible/Clear/Castable) |
| Support Software | ChiTuBox |
| Input Format | STL |
| Data Input | USB |
| Operation Interface | 5 inch touch-control, Multi-language interface |
| Operating Temperature | 20-30°C (advise 20-25°C) |
| Working Humidity | 50%-70% |
| Rated Power | 550W |
| Rated Voltage | AC200~240V or AC100~120V |
| Machine Dimension | 454 x 385 x 905mm |
| Machine Weight | 50kg |
